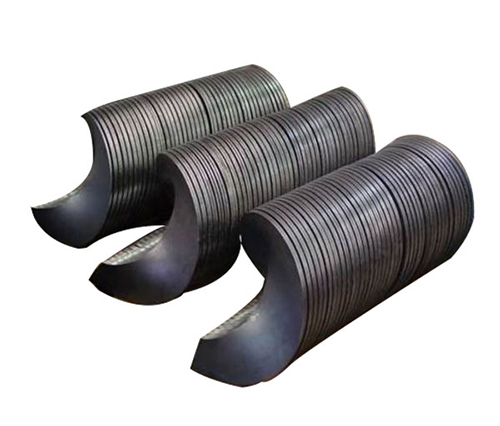

Sectional Screw Flights

Sectional Screw Flights, manufactured by MGMT, are widely demanded in the market as there is no alternative available in terms of quality and performance. For the manufacturing of screw flights, genuine grade carbon steel, stainless steel, low alloy steel, etc., are used, which ensure notable features such as high durability, smooth finish and resistance to corrosion. The screw flights are also packed conventionally to prevent damage during transit. Moreover, we are listed as one of the prominent Sectional Screw Flights manufacturers, Suppliers and Exporters from Gujarat (India).

Material of Construction

• Carbon Steel
• Low Alloy Steel
• Wear Resistance Steel
• Stainless Steel

Features

• A single pitch construction with consistent cross sectional thickness between inner & outer edges
• Every screw flight section is formed accurately up to the customers’ size.
• A wide range of size up to 2000 mm in diameter, 40 mm in thickness, 1500 mm in pitch are available.
• Ribbon, Tapered & variable pitch flights are available on application.
• Flights can also be hard faced or coated with wear protection materials.
• High precision and customized size can be made.

Technical Specifications

Any screw flights with size coming in the range of the following table can be made

PITCH (MM)

MINIMUM INNER
DIAMETER ( MM )

MAXIMUM OUTER
DIAMETER ( MM )

THICKNESS ( MM )

60-150 30 480

CARBON STEEL ≤ 50 MM

MANGANESE STEEL ≤ 50 MM

STAINLESS STEEL ≤ 40 MM

150-200 50 520
200-300 60 670
300-450 90 950
450-500 135 1150
500-650 150 1350
650-850 200 1400
850-950 250 1450
950-1200 300 1600
1200-1250 400 1800
1250-1300 450 2000
