Our Products
Laser Cutting Machine
Mid-level Laser Cutting System for Fast, Efficient Sheet Metal Processing
Efficient processing of parts at optimal speeds and accelerations to suit the part geometry
Reliable cutting performance at an affordable price-performance ratio
1500 x 3000 mm (5′ x 10′) work table area
Incorporates automatic shuttle tables
Quick change lens (5″ and 7.5″)
Capacitive height sensing maintains a constant distance between the head and the material being processed and adjusts to any undulations in the plate
Constant beam length system ensures consistent cutting over the entire cutting area
NC Optimization maximizes machine productivity without operator intervention by automatically determining the cutting head motion based on travel distance
Fast cut-to-cut workpiece changeover
High reliability with low maintenance and operation costs
Integrated LVD – Fanuc machine, control, laser source and motor drive package
Feature enhanced Sirius Plus model offers affordable automation possibilities
Key Options
Loading arm
Choice of 2.5 or 4 kW laser sources
CADMAN-L 3D offline software
Sirius Plus includes additional functionality to allow the addition of automation
Compact Tower (CT) 4, 6 or 10 pallet automated material handling system (on Sirius 3015 Plus)
Models : Sirius 3015

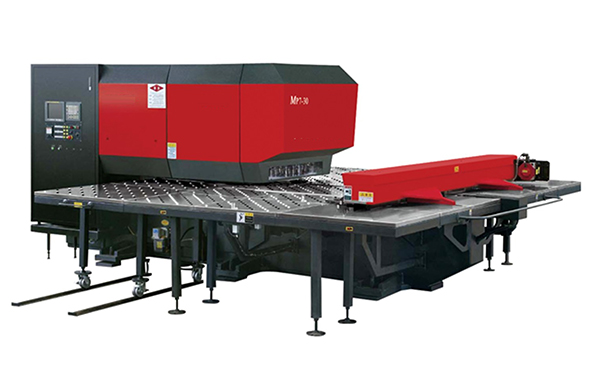

CNC Turret Punch Press
CNC Turret Punch Press :
The Punching on sheet metal is taken care by CNC TANTUS 306 – Auto Index machine. With a 3 mtr long table, it can handle sheet size of 1270 x 3000 mm with auto repositioning beyond 1500 mm. So up to 1.5mtr, machine can punch without repositioning and thus avoiding time loss and further improving quality. With its unique 30 tons capacity it can easily punch 6.4 mm thick MS/4mm thick SS.Fabrication :
We punch steel sheets on CNC Punching Machines – TANTUS 306, 2500 X 1250mm – 6 mm thickness.
Bend by CNC Hydraulic Press of HHPL EHP31.
We weld parts using MIG/TIG, Inverter, Argon Welding as well As Spot and Stud Welding.
Buffing, Grinding & Finishing.
The CNC Turret Punch Press gives remarkable productivity for the components having many perforations or requiring many punches. It is able to punch 6mm in M.S., 6mm in Aluminum & 4mm in S.S. and has vast tooling potential for the increased versatility. This means ability to produce variety of components without re-tooling. This results in significant saving in production cost and noticeable increase in productivity.
This has a great impact on job work cost and so we are able to do job work with excellent quality at affordable cost.
Benefits of CNC Turret Punch Press :
The CNC Turret Punch Press gives high productivity in an economical way.
It has the ability to produce variety of components without re-tooling and thereby saving in production cost.
It is best suitable for regular and repetitive job work.

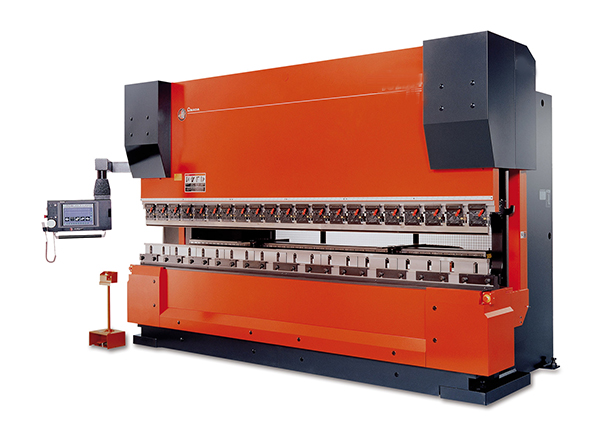

Hydraulic Press Brake
The bending of the precision components is done on 3.1mtr machine. It has a very easy to use and flexible DELEM 56 CNC Controller. PC based CNC DALEM Controller creates new bending circumstances Utilization of “Unfold CAD data” & “3D solid model”
Setup instructions with 3D graphic view(Improve working circumstances with minimized setup time)
Data management through network (Centralized control of job data )
Technical Spec. : EHP110/31
Tonnage : 110Ton
Sheet Size : 3100MM
Stroke Length : 3000mm
Controller : CNC DALEM 56 Contro

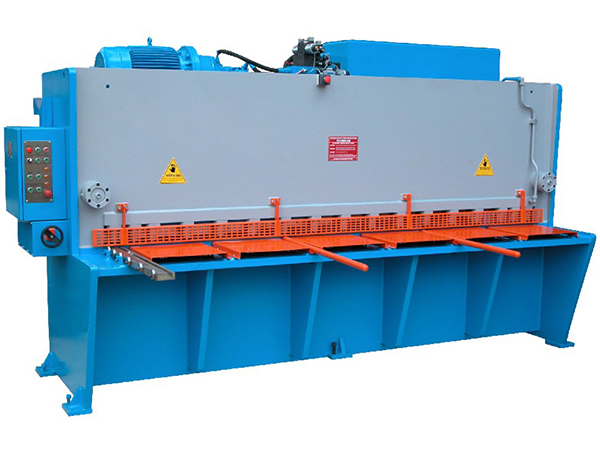

Shearing Machine
CNC Shearing Machine of JFY with shearing capacity of MS 8mm and SS 4mm and shearing length of 3.1mtr. The machine is equipped with Variable Rake angle to be selected through push buttons so as to cut the material of different thicknesses immediately without burr.
A variety of other machines like micro processor based spot welding, CO2/MIG welding; ARC welding machines, 80 tons mechanical bending machine and 75 tons power press are in place.
Future Machine : CNC Laser Cutting Machine.
