Our Products
MGMT is counted as one of the dependable Vibration Motor Manufacturers, Suppliers and Exporters from Gujarat (India). The use of premium quality materials in the manufacturing makes the Vibration Motors highly durable in nature and resistant to adverse conditions. Buyers from India as well as abroad are placing huge orders as there is no alternative available in terms of quality and performance. Esteemed buyers are also facilitated with the availability of the Vibration Motors at pocket friendly prices and within the stipulated timeframe.
Salient Features
Sturdy & robust construction.
Totally enclosed dirt & dust proof construction.
Amplitude of vibration can be controlled.
Heavy duty cylindrical roller bearings for long and trouble free operation.
Low noise as compared to Electromagnetic Vibrators.
Centrifugal Force can be adjusted from zero to Maximum.
Low maintenance due to absence of belts, pulleys, chains sprockets etc.

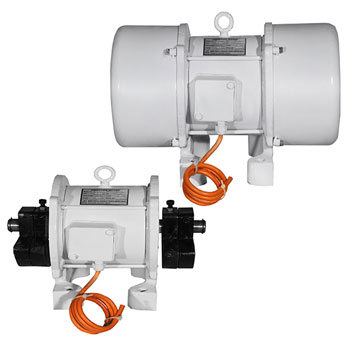

Construction
The motor vibrator motor has removable end shields and of robust design and the made out of graded cast iron. The material for shaft is alloy steel of ample size to transmit the rated vibratory forces.
The ball / roller bearings used are heavy duty to give a long trouble free performance. The design of these motors is aimed at obtained maximum vibrations with minimum power.
The protection class is IP 55 {Totally enclosed construction). The windings consist of super enameled copper wires, slot and phase insulation, varnish etc., as specified for F class, as required.
Specifications
Frame MS-Cast Body (Heavy Duty).
Winding Class E, F, H Insulation type.
Weight = Approx 40 Kg in 0.5 HP & 1.0 HP.
Standard Ball bearing series are over dimensional in relation to the high speed and stain of strong load to offer increased operational reliability.
Drive shaft is made of EN 8 Material of tested quality in order to with stain high torque depending on centrifugal force is achieved.
Field operation temperature: Vibratory motor are design to work from -300 to + 500 Temperature continuously at maximum centrifugal force
| Motor HP | Working Moment (KG.CM) | Centrifugal Force KG Newton | GD2 KGM2 | For Vibratory Equipment (Useful mass) (KG) | Weight Approx (KGS) |
0.25 |
40 |
476 4670 | 0.15 |
25-60 | 10 |
0.50 |
55 |
655 6450 | 0.17 |
60-120 | 19 |
0.75 |
75 |
895 8800 | 0.23 |
120-200 | 29 |
1.00 |
95 |
1132 11100 | 0.29 |
200-450 | 29 |
1.50 |
145 |
1730 17000 | 0.52 |
300-735 | 45 |
2.00 |
235 |
2800 27500 | 0.90 |
485-1210 | 45 |
3.00 |
325 |
3570 35000 | 1.35 |
690-1750 | 95 |
5.00 |
430 |
4530 44400 | 2.10 |
970-2400 | 150 |
7.50 |
680 |
7100 72000 | 3.20 |
1800-5000 | 225 |
